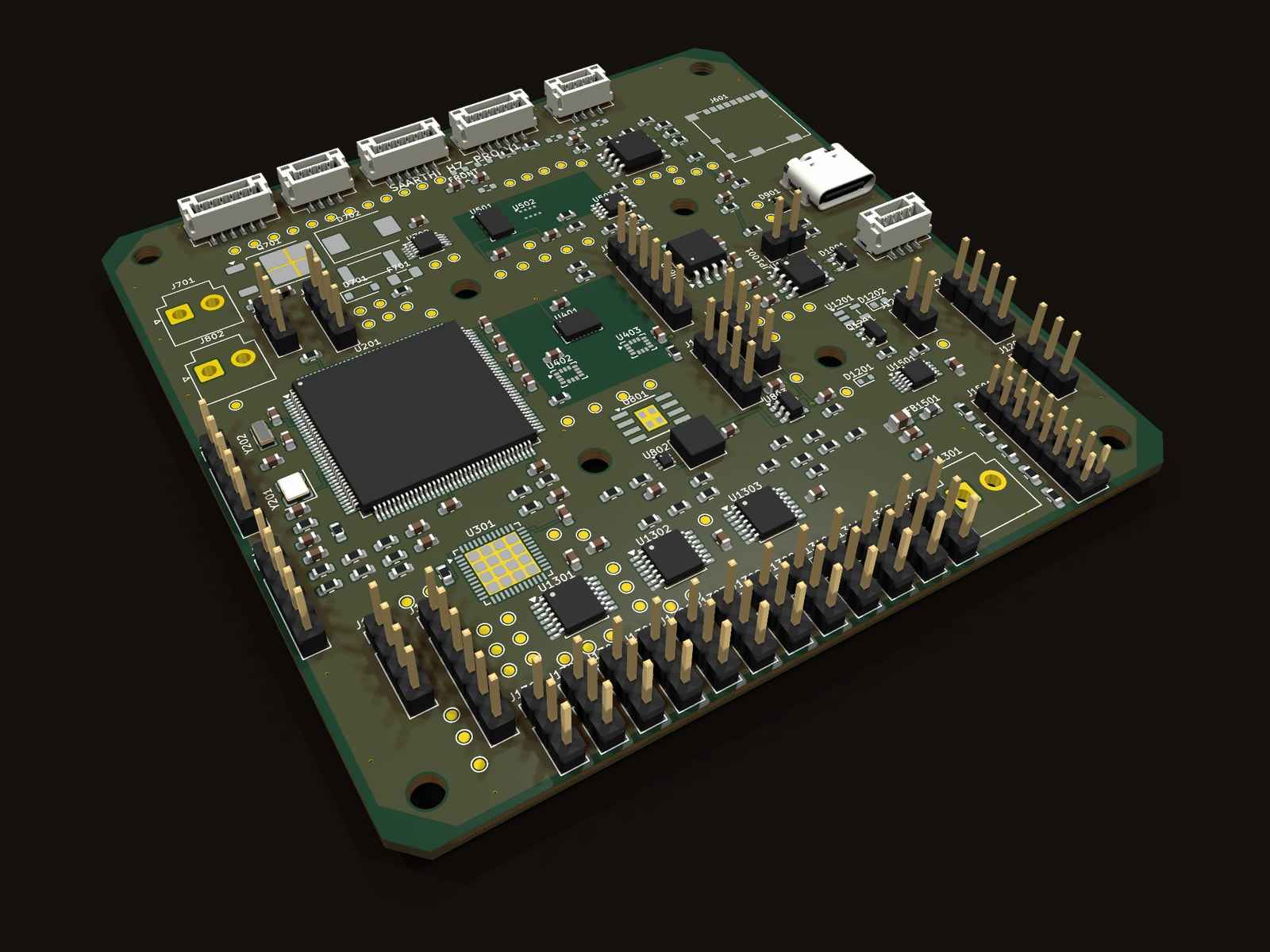

KiCad 3D render of the Saarthi H7-Pro board at an angle, with the STM32H753 at the centre-left, JST-GH connectors along the top edge and twelve servo headers along the bottom.
Exhibit 00 KiCad render, not a photograph

Record 01

Saarthi (H7-Pro)

A dual-MCU flight controller on a 90 mm board, with the servo outputs driven only by a separate safety microcontroller.

Status
In layout — schematic complete, routing in progress
Year
2026
Role
Hardware architecture, KiCad schematic and layout, FlightCore software
Flight MCU
STM32H753ZIT6
Safety MCU
STM32G431CBU6
IMU
BMI088 + 2× ICM-42688-P
Barometer
MS5611 + DPS310
Board
90 × 90 mm

Briefing

Problem
A fixed-wing and glider flight controller that keeps actuator authority away from the flight computer.
My part
Hardware architecture, KiCad schematic and layout, and the FlightCore software.
What exists today
A KiCad board file (ERC clean, routing in progress) and a host-tested C11 core. Not fabricated, not flown.
Key result
72 of 72 FlightCore host tests pass, on a simulation model only.

Objective

A flight controller for fixed-wing and glider airframes that keeps actuator authority away from the flight computer. The STM32H753 runs the flight stack; a separate STM32G431 owns RC input, the safety switch, and every PWM output, so the flight computer never drives a servo pin directly.

Architecture

Schematic

  1. Sensors

    • BMI088 IMU (primary)
    • 2× ICM-42688-P IMU
    • MS5611 + DPS310 barometers
  2. Link: IMUs: one SPI bus each

    Flight computer: STM32H753

    • Flash, FRAM, microSD logging
    • INA228 power monitor
    • CAN FD, USB-C, GNSS and telemetry ports
  3. Safety MCU: STM32G431

    • RC input and safety switch
    • Rail monitoring
    • 12 servo outputs
Saarthi H7-Pro architecture

Diagram from the board file

STM32H753 STM32G431 12 servo outputs RC input Safety switch BMI088 ICM-42688-P ICM-42688-P MS5611 DPS310
  1. 01

    Flight computer

    The STM32H753 runs the flight stack. It reads every sensor but never drives a servo pin directly.

  2. 02

    Safety controller

    A separate STM32G431 owns RC input, the safety switch, and all twelve servo outputs along the bottom edge. Actuator authority stays off the flight computer.

  3. 03

    Sensors

    Three IMUs, each on its own SPI bus, and two barometers from different vendors give the firmware independent sources to cross-check.

Part positions from the KiCad board file of 24 September 2026. The board has not been fabricated. A diagram, not a photograph.

Constraints

The board is a chamfered 90 × 90 mm square with an 80 × 80 mm M3 pattern and a 30.5 × 30.5 mm stack pattern. It is a flight controller, not a power board: battery, motor, and servo current stay on a separate 3S/4S power distribution board, which feeds the controller regulated 5 V. Each IMU sits on its own SPI bus.

Hardware and firmware

KiCad render

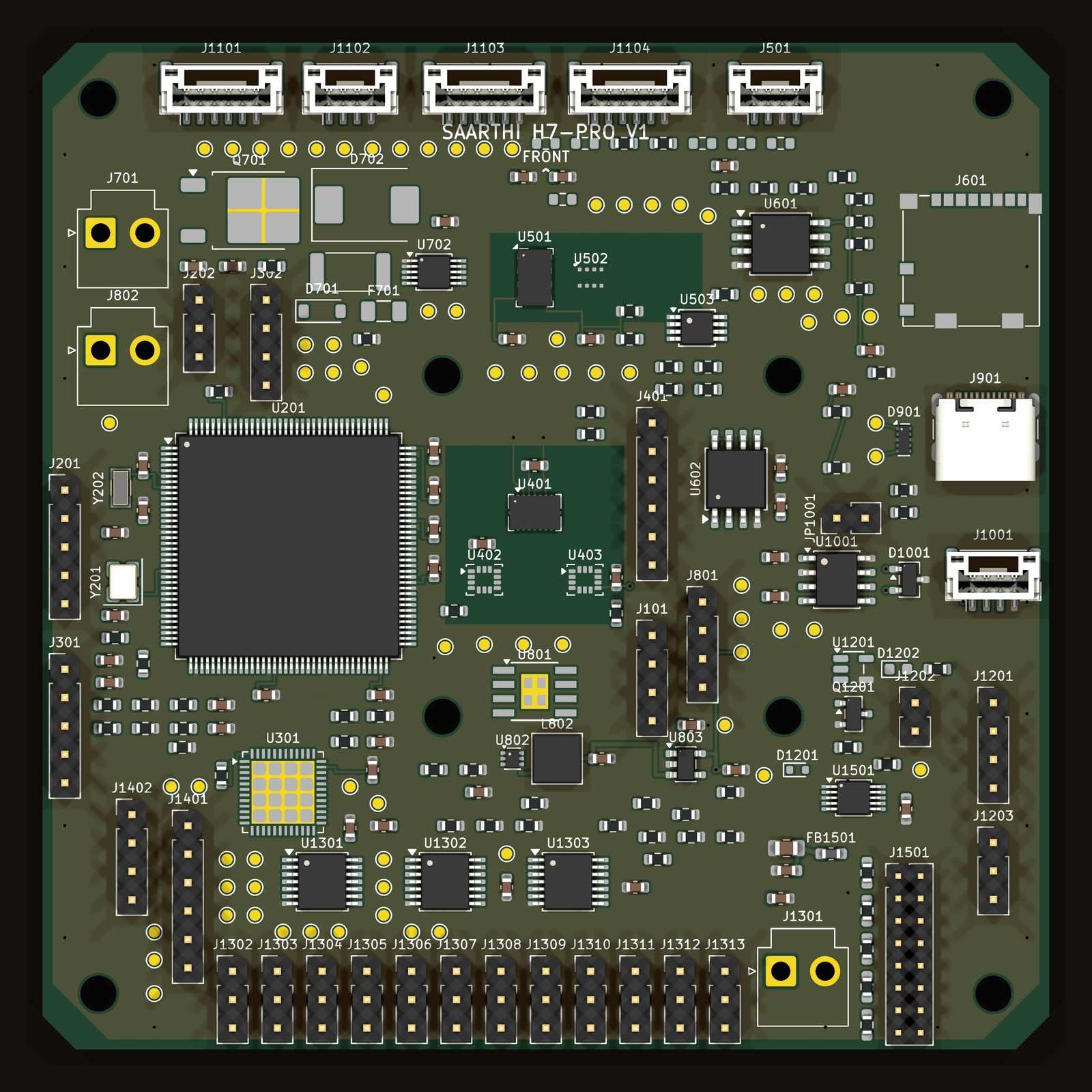

Top-down KiCad render of the Saarthi H7-Pro board, showing all eight mounting holes, the STM32H753, the IMU island in the centre and the servo headers along the bottom edge.
KiCad render of the current board file. Not a photograph: the board has not been fabricated.

Three IMUs on separate SPI buses and two barometers from different vendors give the firmware independent sources to cross-check. The firmware side is Saarthi FlightCore: a portable C11 core built and tested on a host PC, with Mahony, Madgwick-style, complementary, and reduced-MEKF attitude estimators behind one interface. It has no STM32 backend yet.

Measurements

Board checks on the current file (KiCad 10, 24 September 2026).

  • 0 ERC errors. Board file
  • 4 DRC errors, all USB-C hole clearance. Board file
  • 386 Connections still unrouted. Board file

FlightCore, on a host simulation model only (no hardware, no flight).

  • 72/72 Host tests pass. Host simulation
  • 0 Failed seeds in a 100,000-seed stress campaign. Host simulation
  • ≈ 1.0 m Drift in 10 s from an uncorrected 0.02 m/s² accelerometer bias, which is why IMU-only position hold is rejected. Host simulation

Failures and iterations

Two drafts came first: a 50 × 50 mm glider controller (40 mm failed DRC) and an STM32F745 board at 80 × 60 mm. The H7-Pro grew to 90 mm to carry its connectors. Its first ERC run reported 126 errors; annotation brought that to 20, and later passes to 0.

A September 2026 audit found BMI088 ground pins tied to the sensor supply, and the 3.3 V sensor regulator fed from 3.3 V, leaving it no headroom. Both are fixed in the current file (the regulator now takes 5 V). A two-board, six-layer revision is planned but not started.

Status

In layout — schematic complete, routing in progress

End of record R-01
